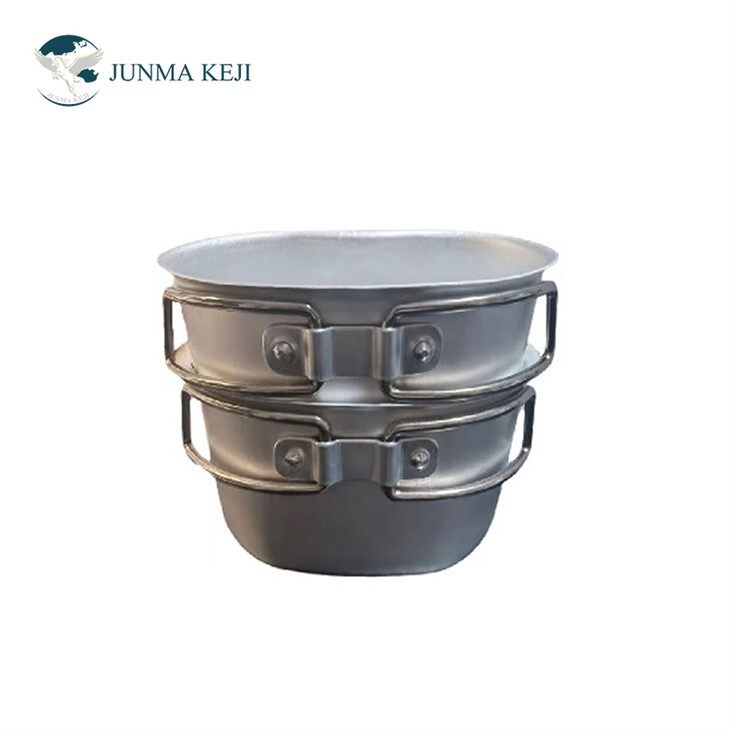

Army Aluminium Canteen Cup

Material Selection & Blanking

Although pure aluminum is more ductile than its alloy counterparts, this property necessitates much stricter control over the force applied by molds and equipment during the deep-drawing process. A single, forceful drawing stroke is frequently used by typical small-scale commercial manufacturers; this rudimentary technique causes the thickness of the aluminum cup walls to vary greatly.
On the other hand, we use a whole range of heavy-duty, high-speed hydraulic presses that are rated at 300 and 500 tons. These presses are integrated with our unique multi-stage, progressive "kidney-geometry" molds. We gradually lengthen the atomic structure of aluminum layer by layer using a fundamental three-step procedure that consists of "initial deep-drawing," "secondary elongation," and "precision forming".

This technique ensures a thickness tolerance of less than 5% between the cup base and walls in addition to producing a finely contoured, arc-shaped surface that fits standard-issue 1-liter military canteens. As a result, the final products have lateral crush strength and pressure resistance that are almost 35% higher than those of standard stamped components.

Following the deep-drawing process, the rim of the semi-finished cup retains irregular burrs and excess material. We employ a six-axis robotic edge-finishing system to perform fully automated trimming, achieving a cut-edge flatness tolerance of less than 0.1 mm. This is followed by a precision rim-beading treatment. This flanging process not only renders the cup rim smooth and free of sharp edges-thereby ensuring that a soldier's lips remain completely unscratched, even when drinking in the dark or during tactical maneuvers-but also exponentially increases the rim's lateral resistance to deformation and torque.

This technique ensures a thickness tolerance of less than 5% between the cup base and walls in addition to producing a finely contoured, arc-shaped surface that fits standard-issue 1-liter military canteens. As a result, the final products have lateral crush strength and pressure resistance that are almost 35% higher than those of standard stamped components.

Using exclusive fixtures, a consistent release of compressive force is applied to each riveting point. Additionally, production batches are subjected to stringent random sampling tests with a vertical static tensile load of 25 N (roughly 2.5 kg) prior to shipment in order to confirm their resistance to fatigue failure. This ensures that the handle will remain completely secure-free from loosening, detachment, or leakage-under any challenging environmental conditions.

• Custom Branding: We can accurately and permanently mark the bottom or sides of our mess cups with national military insignia, NATO Stock Numbers (NSN), proprietary brand logos, or particular production years (e.g., 2026) thanks to our heavy-duty, multi-ton steel stamping presses and multiple high-precision fiber laser engraving machines.
• Mold Modification & Capacity Scaling (Custom Dimensions): With the help of a team of skilled mold engineers and a full suite of CAD/CAM CNC machining centers, we are able to design completely new cup body structures, such as kidney-shaped, square, and cylindrical designs, that are specifically tailored to the distinctive shapes of various national military canteens and individual tactical portable stoves (like Esbit stoves). With a development lead time of only 14 to 18 business days, these custom molds can be created using the technical drawings or physical samples that are supplied.
